智能热风压布条机丨可调节压力及温度,自动布条剪切

发布时间:2020-07-18 来源:佛山市誉泰机械自动化科技有限公司

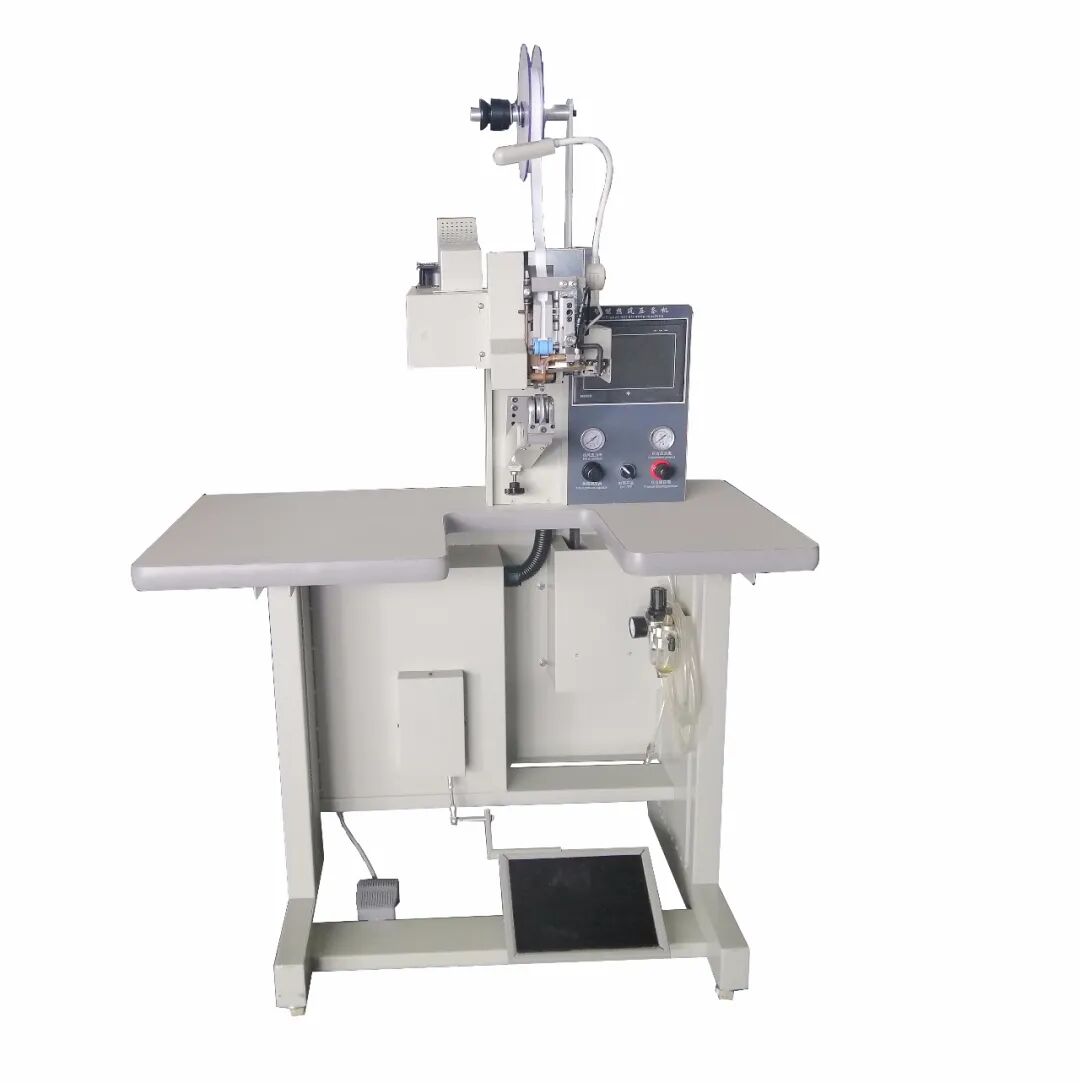

智能热风压布条机

Smart Hot Air Press Cloth Machine



功能说明及注意事项

Function description and precautions

1、根据不同材料,上下压轮不同压力调节。

According to different materials, the pressure of the upper and lower rollers is adjusted differently.

2、PLC控制触摸数字调节参数,方便简捷。

PLC control touch digital adjustment parameters, convenient and simple.

3、多种布条长度选择,自动计算长度,自动切剪布条,亦可脚触切剪。

A variety of cloth strip length options, automatic length calculation, automatic cutting and cutting of cloth strips, and foot touch cutting.

4、两段温度设定,使温度恒定,可调低风高温,不易破坏布料表面。

The two-stage temperature setting makes the temperature constant, and the high temperature of the wind can be adjusted to reduce the surface of the cloth.

一般风炉温度设定350℃-400℃,风口温度300℃-320℃。

Generally, the temperature of the furnace is set to 350℃-400℃, and the temperature of the tuyere is 300℃-320℃.

5、热风压表调节时注意:低速低温,高速高温,0.1-0.3范围。

Note when adjusting the hot air pressure gauge: low speed and low temperature, high speed and high temperature, 0.1-0.3 range.


产品参数 Product Parameters

项目

Project

基本能效

Basic Energy

电压

Voltage

220V

滚 轮 速 度

Wheel Speed

21M/min

滚 轮 压 紧 力

Rollerpressing Force

0-800N

热 风 温 度 范 围

Hot Air Temperature Range

0-700°C
功 率 Power 2.85KW

工作气压

Working Pressure

40kg/cm²

风嘴宽度

Air Nozzie Width

20mm

热风气压

Air Pressure

0.1-0.2kg/cm²

上轮宽度

Upper Wheel Width

24.5mm

下轮宽度

Lower Wheel Width

24mm

备注 Note:

炉内温度  Furnace Temperature:350-400℃

空气出口温度  Air Outlet Temperature:300-320℃
